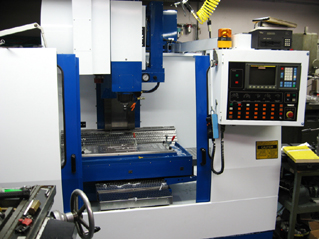

Supermax Max 3 VMC
The beauty of this 40 taper machine besides it's speed, ruggedness and accuracy, is the CNC control. It
brings real meaning to the phrase - "if you can think it and draw it, you can make it!"
22 tools -7 1/2/10hp - 6000rpm
Fanuc
OM Control
34(X) x 17.3(Y) x 24.8(Z) travels
Reduction geared head
Hurth Vertical Boring/Slotting Mill
Leave it to the Germans to build a 40 taper beauty like this. Super heavy duty and super accurate,
with optical positioning and fine boring and feed controls. Sports massive box way construction. I've seen many manual mills
in my day, but none better.
50 - 3200rpm 4hp spindle w/ reduction gearing
13 spindle speeds - 9 boring and 18 table feeds
16"(X)
x 10"(Y) x 4.7"/23"(Z) travels
Optical positioning (.0001")
Slotting head & automatic depth control
Air operated quick tool changer
Mori Seiki SV-50 VMC w/Pallet Changer
Speed. Horespower. Rigidity. Pallet System. With these things and control features that
say yes, it's okay to go faster and still hold tolerances,
this new addition to ShrapNell raises the bar in what we can offer the customer
in terms of cost, turnaround, precision and overall value. A Fanuc 18C Control w/Look Ahead, High Speed Circular Quadrant Projection
Compensation, Rigid Tapping, Custom Macro B, In Process Gaging. a full 4th Axis and High Pressure Thru Spindle Coolant, are just
some of the reasons why.
30 Tools - 25/30hp - 10K rpm Spindle
31.5"(X) x 20.1"(Y) x 20.1"(Z) Travels
1260 IPM Rapids - 0.04 - 630
IPM Feedrates
